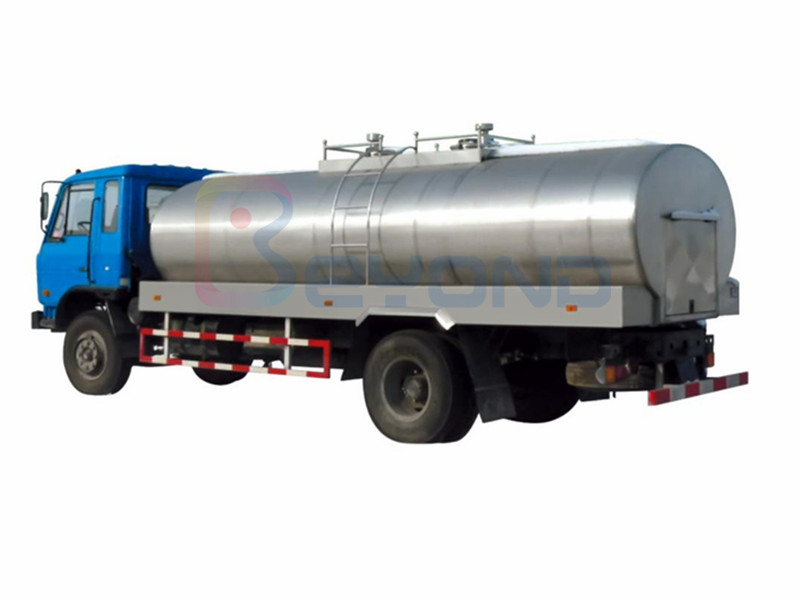

液態食品車載罐Milk tanker on truck
廣泛運用于牛乳等液態食品的長距離運輸，罐體內外全部采用優質SUS304-2B不銹鋼制造，罐體夾層采用絕熱結構和PU聚氨酯發泡新工藝，罐體內壁的轉角均采用大圓弧過渡無死角，罐內設有清洗噴頭，易于清洗，符合行業標準和食品衛生要求。罐內設有防撞板，減少運輸過程中物料的慣性沖擊力。
Overview The milk tanker is widely used for long distance transportation of milk or other liquid products.The tank wall adopts high quality SUS304-2B stainless steel，the jacket adopts high density PU as insulation with new procedure，all the inner corners are well radius to avoid sanitary dead angel；and CIP spraying balls are fixed inside which enables easy cleaning.It is up to industry standard and food sanitary requirements.
使用本罐可保證液態食品在運輸過程中的質量，改善衛生條件，減少損耗，降低運輸費用和節約勞動力。不運輸液態食品時，可將罐卸下，做貨車使用。
The tank can keep the milk in good quality during the transportation，improve the sanitary conditions，reduce transfer cost and save labor.It can be as s truck when it does not transfer liquid milk，and download the tank.
技術參數Technical parameter
產品規格：2000L、3000L、4000L、5000L、6000L、8000L、10000L、12000L、15000L、20000L
溫度：-20℃~+40℃。罐內液溫4±1℃，滿載8小時變化52℃
標準配置：快開式密閉人孔、呼吸閥、CIP清洗管路、放料口（配閥）
配件材質：均為SUS304，密封圈選用食品衛生級硅橡膠
外形尺寸：根據用戶所提供汽車底盤的尺寸
Product specification：2000L，3000L，4000L，5000L，6000L，8000L，10000L，12000L，15000L，20000L.
Temperature:-20℃~+40℃，Liquid temperature in the tank：4±1℃
Temperature change in eight hours loading：≤2℃
Standard fiting material:quick open seal manhole，breathing valve，CIP cleaning pipe，material imputing hole
（valve attached）
Fitting material quality:SUS304，seal packing collar adopts food sanitary silica gel.
Size:according to the size of truck batholith provided by customer.
